Unlock a world of sub 250g in GoPro quality
- GoPro and O4 Pro integrated
- Sub 250g freedom
- 3.5'' beast
Designed by skkyFPV in collaboration with AOS RC
Drone
skky35 is made for cinematic filming where weight and noise matters without compromising on performance and image quality
Highlights
- 180g dry & 247g all-up-weight (750mAh)
- 5-7min GoPro filming (5+km distance)
- Stable footage with low vibration AOS frame
- 130 km/h max. speed
- 3.5” freestyle agility (x-frame)
- Touchscreen and buttons to control GoPro
- Silent (sounds like a DJI Mini)
- Small & compact – fits in every bag
- Robust & wind-resistant (no GoPro “windshield”)

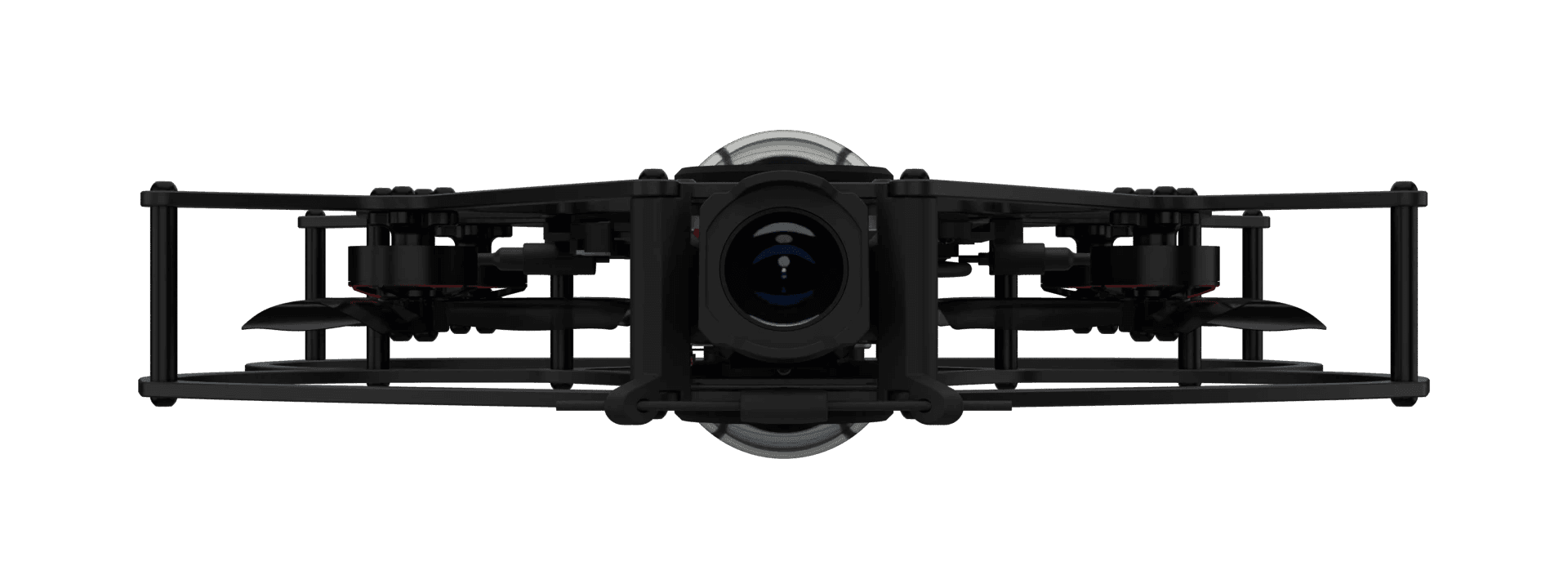

The Drone
- AOS 3.5 V5 low vibration frame
- GoPro 11/12/13
- Naked DJI O4 Pro
- 1404 3800kV motors – flies like a 5’
- Latest Flywoo F7 AIO
- HQ 3.5×2.5 props – the sweet-spot for sub 250 gram
- Flywoo M10 GPS
- Receiver (CRSF, ELRS) or Buzzer (for DJI)
- GoPro touchscreen
- skky light & full prop guards
skky35 bind-and-fly drone available here
- Select your GoPro (11, 12, 13)
- Select your receiver (DJI, ELRS, CRSF)
- Built, coated and tuned by FPVFrame in Switzerland
- Made to order (3-4 weeks until shipping)
GoPro Kit
skky GoPro kit integrates a GoPro into the AOS 3.5 V5 frame with an all-up weight below 250 grams
Highlights
- 9g light (made for sub 250g builds)
- Stable GoPro footage (no vibration / jello)
- Full control with touchscreen, buttons & led
- GoPro speaker and mic
- Variable GoPro angle from 0-30 degree
- Robust design protecting the GoPro
- Small and wind-resistant
- ND Filter support
The GoPro Kit
- GoPro Mainboard Mount
- GoPro Lens Mount
- GoPro Base Mount
- GoPro Microphone Bracket
- GoPro Flywoo ND Filter Mount
- Camera Cage
- Naked O4 Pro / Lite Camera Adapter
- O4 Pro / Lite / O3 Antenna & GPS Mount
- Crossfire Receiver & Minimortal Mount
- Capacitor Unicon 25V 470uF Mount
- ViFly Finder Mini Mount
- Two M2 washers
- Ten M1.4x5mm Phillips screws
- skky GoPro Sensor Ribbon Cable
- NamelessRC BEC Module for GoPro 9/10/11/12/13
skky GoPro kit available here
Naked O4 Pro Kit
Upgrade to a naked O4 Pro and save 11-18g weight
Highlights
- Save 11-18g weight (30-50% reduction)
- Fully compatible with O3 / O4 frames and naked Cam mounts
- No additional hardware required
- ND Filter support (O4 Pro, Flywoo GoPro)
Naked O4 Pro configurations
- V1 Light: Mount the O4 Pro in an O3 frame
- V2 Light: Lighter and more compact
- V2 Ultra Light: Without ND, USB/SD-Card
skky Naked O4 Pro Kit available here
Prop Guard
The world is your oyster with prop guards – flythroughs, event filming, close-up shots, …
Light guard
- Powerful & agile filming
- Props protected
- 17g light (for sub 250g builds)
- 5+ min whooping (530mAh, 250g)
Full guard
- Smooth & durable filming
- Top and bottom protection
- 50g (when weight matters less)
- 6+ min whooping (750mAh, 300g)
Common features
- Snap-on in 3-5min (8-12 M2 screws)
- Print at home / local shop in PETG or TPU
- No guard in GoPro view with 105% zoom
skky prop guard available here
Extras
Enhance your skky35 with a GoPro touchscreen and lighter camera cage
GoPro Touchscreen Case
- Full GoPro control & video preview
- Easy connection with clip
- Integrated cable storage
AOS Camera Cage
- 3-4g weight savings for sub 250g build
- 4 versions (O4 Pro, Naked O4 Pro, Naked O3, Original)
- Fits Flywoo GoPro ND Filter
- Supports skky prop guards
O4 Lite Kit
- Mount DJI O4 (Lite) in O3 Frame (20mm)
- 2 and 4 screw mounting available
- Fits into Naked O4 Pro Camera Cage
skky extras available here
Build yours
Get all you need to build your own skky35
Compatible parts
- Frame: iFlight AOS 3.5 V5
- GoPro: 9/10/11/12
- VTX (15mm max height): O4/O3 (naked), Vista
- Stack (15mm max height): F7 AIO
- Motors: 1404 with 3000-4000kV
- Battery: 4S 500-750mah LiPo (<70g)
- ND Filters: Flywoo GoPro ND Filters
- Antenna: Mount for (naked) O4 / O3 included
- GPS: Mount for Flywoo Nano GPS v3.1 included
- Prop guards: skky light and full prop guard
Our support
Tests
Get insights about the best components for your build
4S Battery Test for sub 250g
- 47 4S LiPos for sub 250g weight reviewed together with AOS RC
- Tested for capacity, burst current and weight
ND Filter Test for DJI O4 Pro
- Reviewed 8 ND Filters for the DJI O4 Pro from DJI, iFlight, Camera Butter, BetaFPV, GepRC, Flywoo and Freewell
- Tested for ND stops, fit, vignetting, flare, weight, and case usability
